2 pcs ESP8266 Module: 1 pcs CCL & 1 pcs Metal
ESP8266 is a highly integrated chip designed for the needs of a new connected world. NodeMCU, is an open source networking platform. It uses Lua scripting language programming
It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application.
Specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.
Color:black

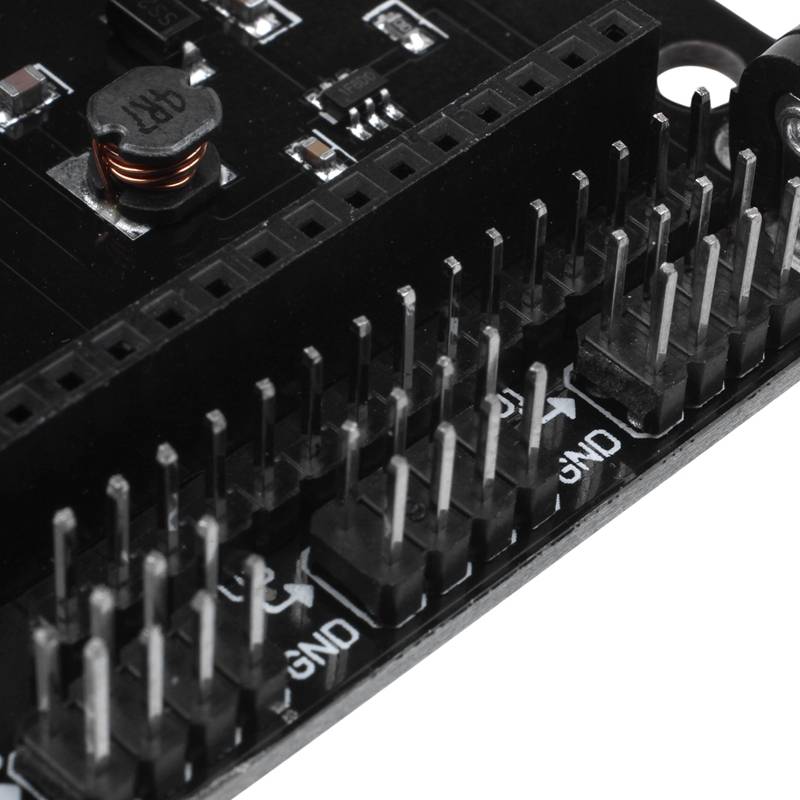

CCL ESP8266 Module:
This baseboard is fitted with an onboard switching DC-DC buck (wide input range) and a standard 5.5 x 2.1 mm DC socket, mounting holes and numerous headers are available to esase NodeMCU V3 module usage
Allows developers to deal with the underlying hardware in a manner similar to for Arduino
Applies to the basic testing of the DIY breadboard for LoLin V3 NodeMcu Lua WIFI
Material:CCL
Size:6*6cm
Metal ESP8266 Module:
Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
Great way to connect your Arduino or other microcontroller projects to a WiFi network.
Prototype your IoT (Internet of Things) products within a few Lua script lines.
Power your developement in the fastest way combination with NodeMCU Firmware.
Type:ESP8266.
Wireless standards: 802.11 b / g / n.
Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M).
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM.
Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V).
Working Current: Average: 80mA.
Operating temperature: -40 Celsius ~ 125 Celsius
Storage temperature: Nomal temperature.
Material: Metal
Size: 11.4 x 6.8 x 0.4cm
  Package Contents:
2 * ESP8266 Module
Only the above package content, other products are not included.
  Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
