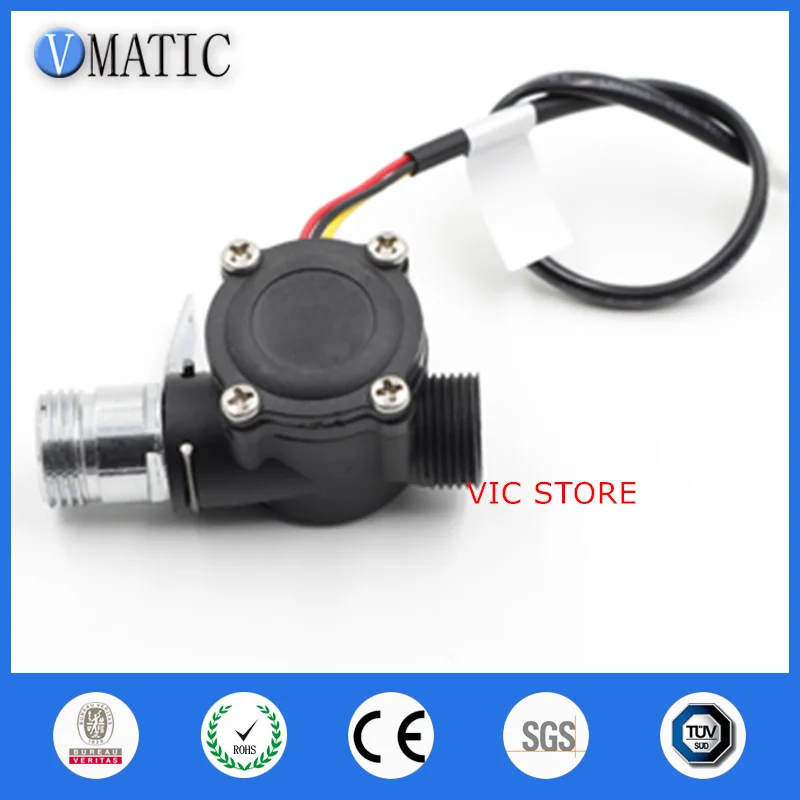

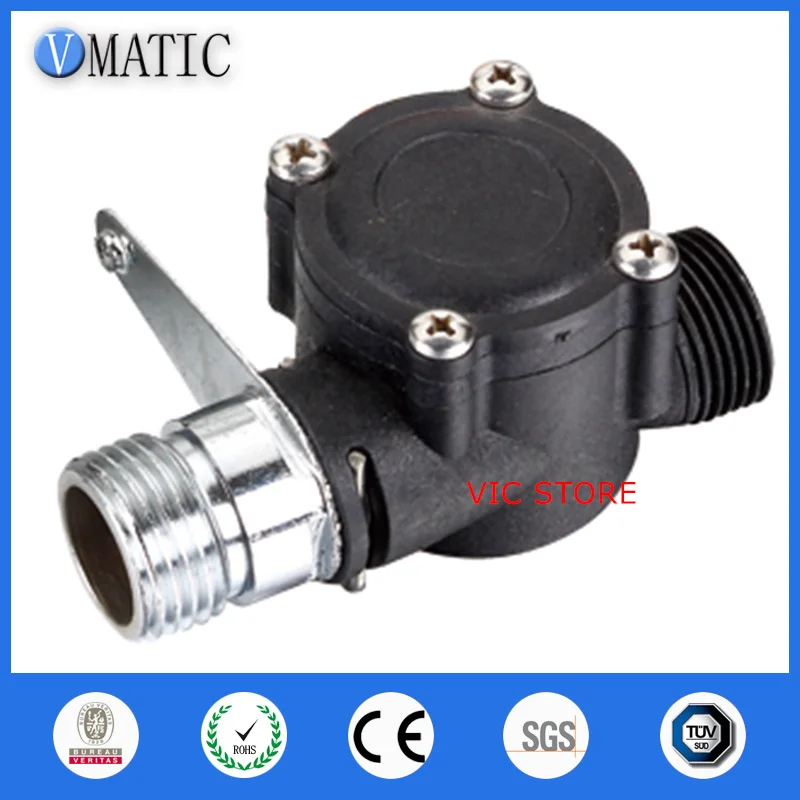

Free Shipping New Design Rate Plastic Mico Water Flow Sensor VCA168-1









Introduction:  flow sensor consists of magnetic core, rotating impeller, external casing and sensor. Flow through the sensor activates the magnetic core to trigger hall action, with pulse signal output.



Features: imported components of the magnetic switch, sample working principles, and highly reliable, cheaper price.



Applications: it is used in the control of water circulation, water charging and discharging, water heating, water pump switch on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy water heater, air condition and other water systems.



Sensores de Fluxo



Descrição: o interruptor de escoamento do núcleo, e um alojamento do sensor, quando o líquido por condução da operação do núcleo, fazendo com que a operação de comutação, o sinal de comutação de saída.



Características: Importado elemento de comutação magnética, o princípio de funcionamento é simples, confiável e barato.



Aplicações: aquecedor elétrico de água, aquecedores de água solares de controle de circulação de água, condicionadores de ar e outros sistemas de água, fora do controle da água, interruptor de controle da bomba, controle de válvula solenóide on-off ou a força da água, controle da água alimentado.









Flow sensor

Specifications

Withstand hydraulic pressure	<0.35MPa
Voltage rating	5~24VDC
Insulation res	>100MΩ
precision	0.2~6L/MIN±10%	2~30L/MIN±10%	1~60L/MIN±10%
Max output pulse voltage	>4.7VDC(input voltage5VDC)
Min output pulse voltage	<0.5VDC(input voltage5VDC)
Output pulse duty cycle	50%±10
Junction way	Red wire +,black wire-,white(yellow)wire output signal









Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-8 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
