Описание

Packing list:

1 piece 16 Channel 4K AHD DVR BOARD
2 piece SATA Cable
1 piece 4 PIN to SATA Power Cable
(this main board can work as DVR)

Feature

Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings

Support VGA, HDMI full HD output simultaneously

Support ONVIF; access third party

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions

Support web, CMS, center platform management software MYEYE, provide SDK development

Support various mobile monitoring (iPhone, Android)

Remote Access, With DNS (ARSP),easy to monitor remotely

Support UTC, control signal& video stream transmit through one single coaxial

Support XVI/AHD/TVI/CVI/CVBS/IP six signals

Support intelligent analysis: Human shape detection, face detection, car shape detection.

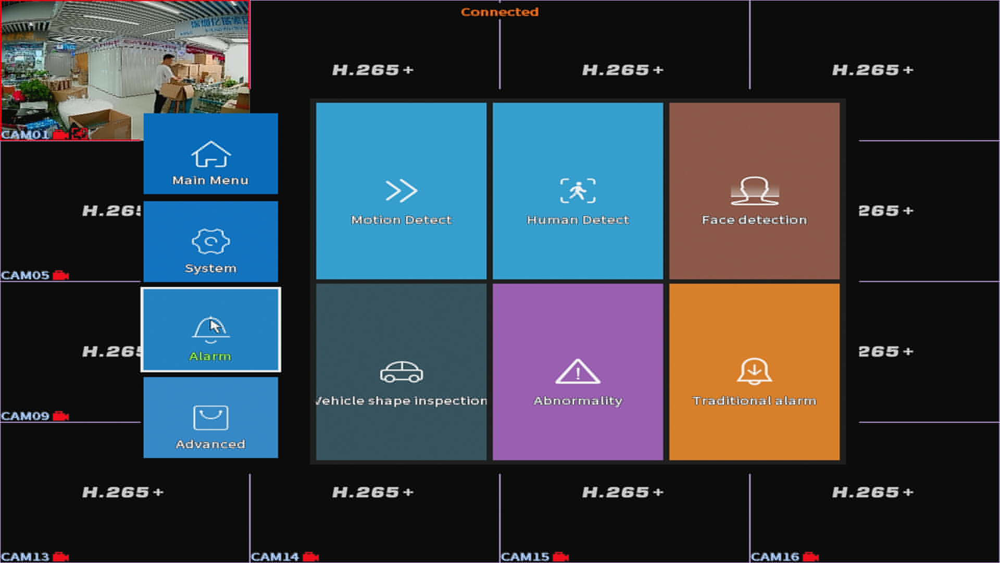

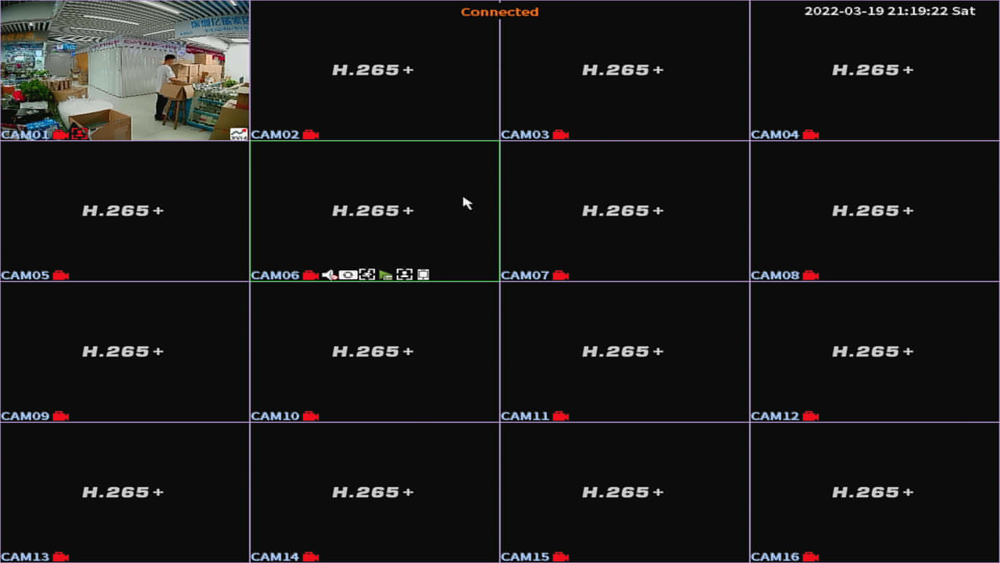

Operation Interface Details

Win10 Style

Support multi-language

Support English, Russian, Italian, Portuguese, Spanish, French, Germany., etc...
Total 24 languages

Please make sure include your country language, we will not update firmware to other language.

H.265 AHD Encode Mode

This is the AHD H.265, not the same as IP H.265,No require for the camera, if your camera is the AHD camera and contact this dvr, it will be H.265 storage, can save around 50% RAM than normal ahd dvr
The Encode menu will show only 1080N for defult, you must contact your AHD camera then will have the right information of this camera, for example,if you contact AHD 8MP camera, it will show 4K-N, not 1080N.
This DVR supports 8MP AHD camera.

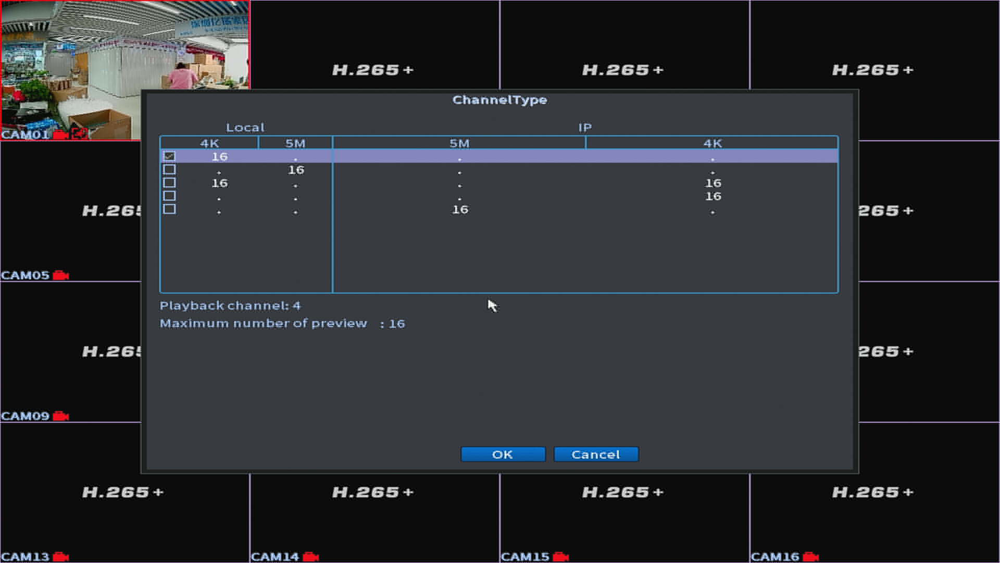

Different Models optional

1: 16CH 4K XVI/AHD/CVI/TVI
2: 16CH 5MP XVI/AHD/CVI/TVI
3: 16CH 4K XVI/AHD/CVI/TVI + 16CH 4K IP
4: 16CH 4K IP
5: 16CH 5MP IP

Different Display Resolution optional

1: 1024*768
2: 1280*720
3: 1280*1024(default)
4: 1440*900
5: 1920*1080
6: 2560*1440(2K)
7: 3840*2160(4K)

Support 2*HDD Storage

Up to support 14TB for each disk. We recommend you to use 12V/5A or more power supply so that you can have enough power to drive the hard drive properly.

We recommend use the Newest HDD. Use the security HDD will work more better.
PC HDD most can not work.

Car Detection

It is newest Function, need buy this function in APP

Play Mode

Software Downloading

Computer Client Download：CMS or VMS(Click on the picture to download)
APP download：Xmeye
