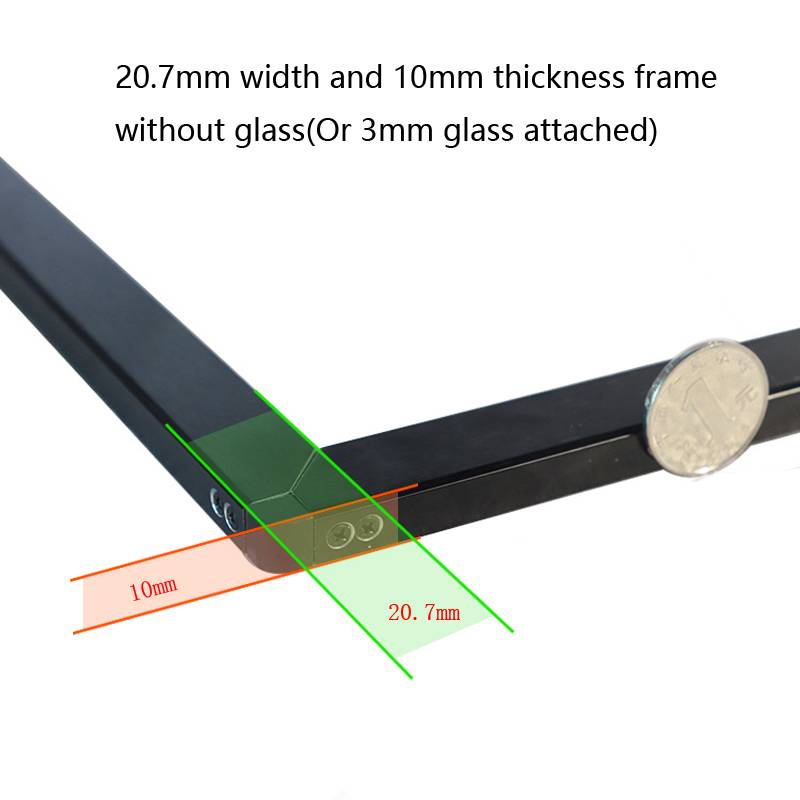

custom 460*460mm IR touch frame without glass,infrared multi touch screen overlay kit

Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen.The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame.Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light.The bezel shields the parts fromthe operation

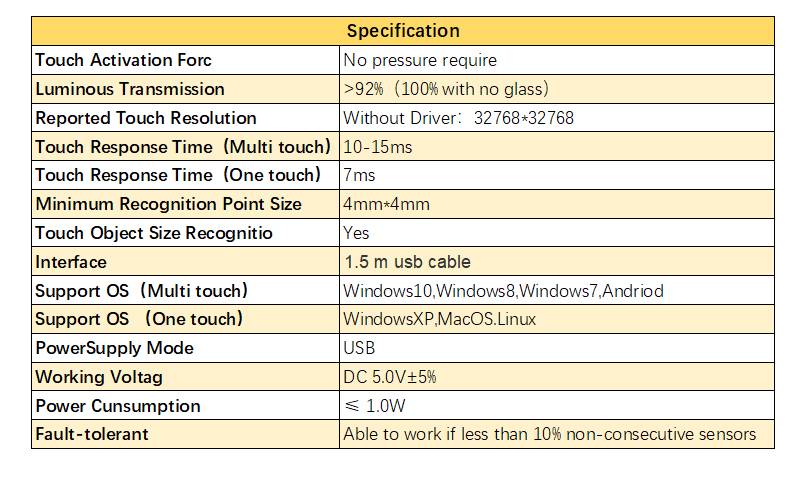

Specification of IR Touch Frame

Frame Material: black Aluminum frame

Touch Points:10 points touch

Ratio:16:9

Minimum Recognition Point Size:4mm*4mm

Supporting resolution:32768×32768

Touch Response Time:≤10ms

Input method:Any opaque object, such as finger,touch pen, etc.

calibration:4-point calibration

Number of clicks:Infinite times

Touch pressure:No pressure requirement

Interface type:1.5 m USB cable receptacle, the receptacle 5P

Line length:1.5m

communication interface:USB 2.0

Power supply mode:USB 5.0V

Working Voltage and Current:4.75~5.25V , ≤200mA

Humidity:Up to 90% RH from 0°C to +40°C, non-condensing

Temperature Range:Working temperature:-10℃～50℃，Storage temperature:-20℃～60℃

Fault-tolerant:Able to work if less than 10% non-consecutive sensors are damaged

Anti-light Interference:Excellent

Firmware Upgrade:USB Upgrade, Windows 8,Windows 7

WHAT YOU GET

1*infrared touch frame.

NOTE

• 1.Support OS（Multi touch）:Windows11,Windows10,Windows8,Windows7,Andriod

• 2.Support OS （One touch) :WindowsXP,MacOS.Linux

• 3.If you use the product on Smart TV , Please conact us before you purchase . Because many Android system on it don't have the touch module.

• 4.If you want to use the touch frame on an Android box, you need to know if the Android box has a service to pay for the touch screen, because the touch screen module is turned off on some Android boxes.

• 5.About tariffs: different countries have different starting points for tariffs. If the products purchased have tariffs, the buyers need to cooperate with the customs to settle them.

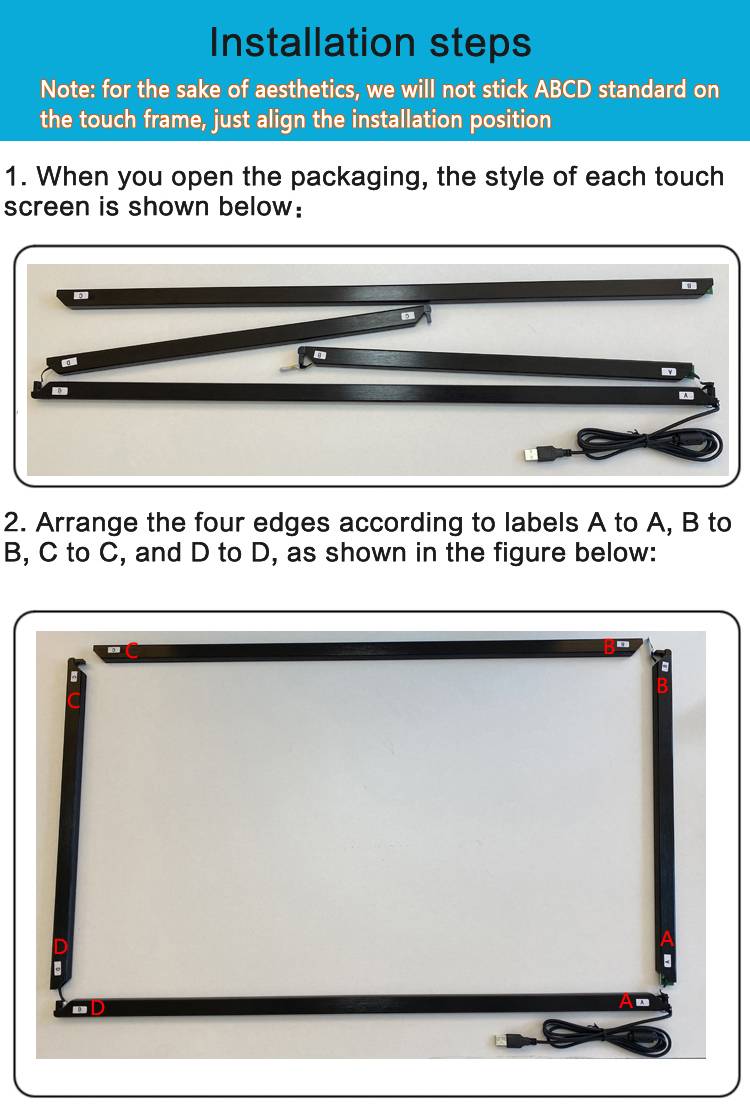

• 6.We've attached double-sided tape to the back of the IR touch frame, and you need to fit the four loose frames together and test them before you can install the IR touch frame in front of the display.If testing and calibration software is required, please provide us with an email address

Can be customized in any size(15-300inch)
