WS2812B Led 8/16/24/35/45Leds Pixel SP110E Controller Kit Gyverlamp RGB Led Ring lndividul AddressabIe WS2812 IC BuiIt-in Lights

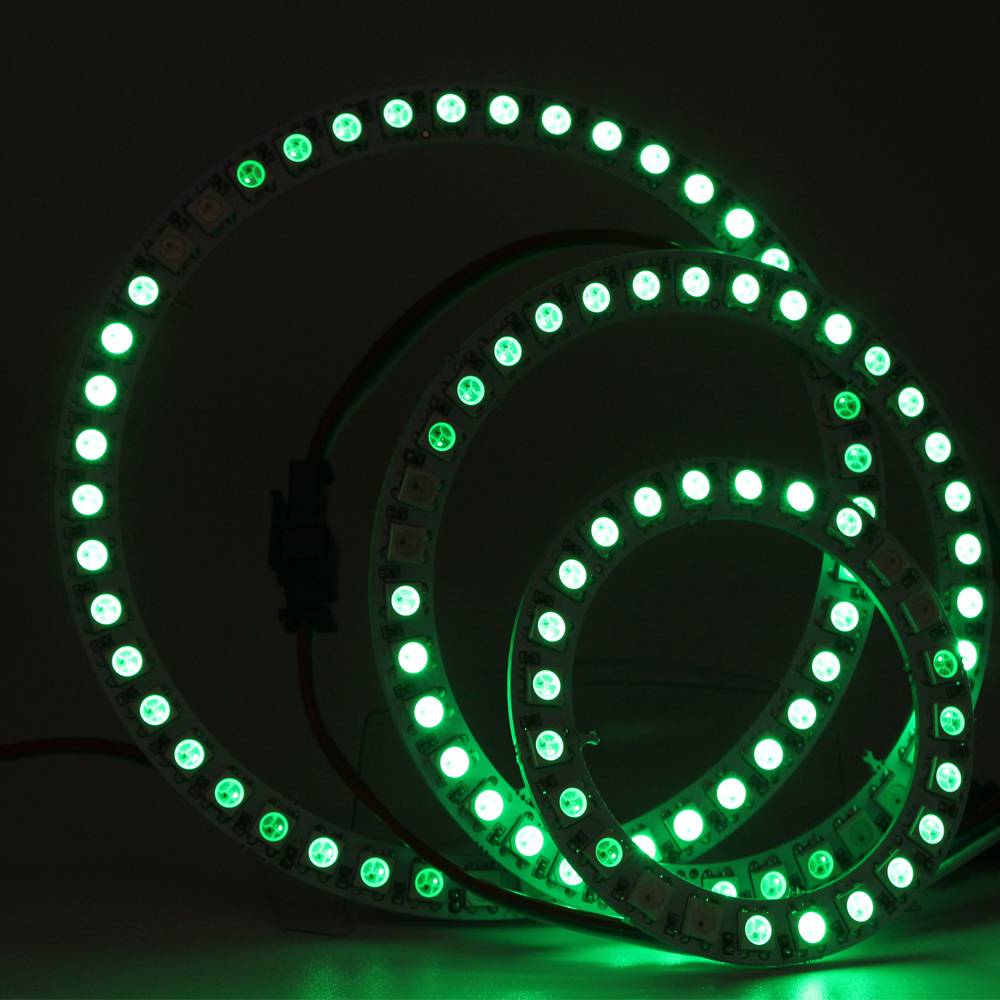

8/16/24/35/45Leds Ring：

Description:

There is a single data line with a very timing-specific protocol.

Since the protocol is very sensitive to timing,

it requires a real-time microconroller such as an AVR, A rduino, PIC, mbed, etc.

It cannot be used with a Linux-based microcomputer or interpreted microcontroller

such as the netduino or Basic Stamp.

Chip: WS2812 (built-in LED)

LED:8/16/24/35/45pcs 5050 RGB full color highlighting

Voltage:DC5V

SP110E Controller：

Features:

1. App Control via Bluetooth 4.0, long Control distance, convenient to use;

2. Support almost every kind of one-wire or two-wire LED driver IC ;

3. Brightness adjustable, With 120kinds of patterns, which are vivid and beautiful;

4. Support setting total pixel number, able to control up to 1024pixels;

5. DC5V~12V wide working voltage, preventing reverse connection of power supply;

6. User setting saving;

Specifications:

Working temperature: 20℃~60℃;

Working Voltage: DC5V~12V;

Working Current : 20mA~40mA;

Remote distance: 20 Meters;

Product size: 85mm*45mm*22mm;

Product weight: 40g ;

Package includes:

1* Bluetooth pixel controlle (Note: power supply/led strip not included!)

Note:

If you use this controller for 4 channels led strip, please cut the 4 pin connector of strip and change to the 3 pin connector to connect it, please connect the CLK-wire alone.

WS2812B Led 8/16/24/35/45Leds Pixel SP110E Controller Kit：
