Описание

NAND ProMan is a Professional programmer. It can support 16M-4G popular NAND flash chips and will add more supported devices in the future. It's good Repair Tool in many fields, such as automobile DVD GPS, automobile multimedia, data recovery and so on.

Software( in English or in Chinese) download link:

pan.baidu.com/s/1mgq5zG8

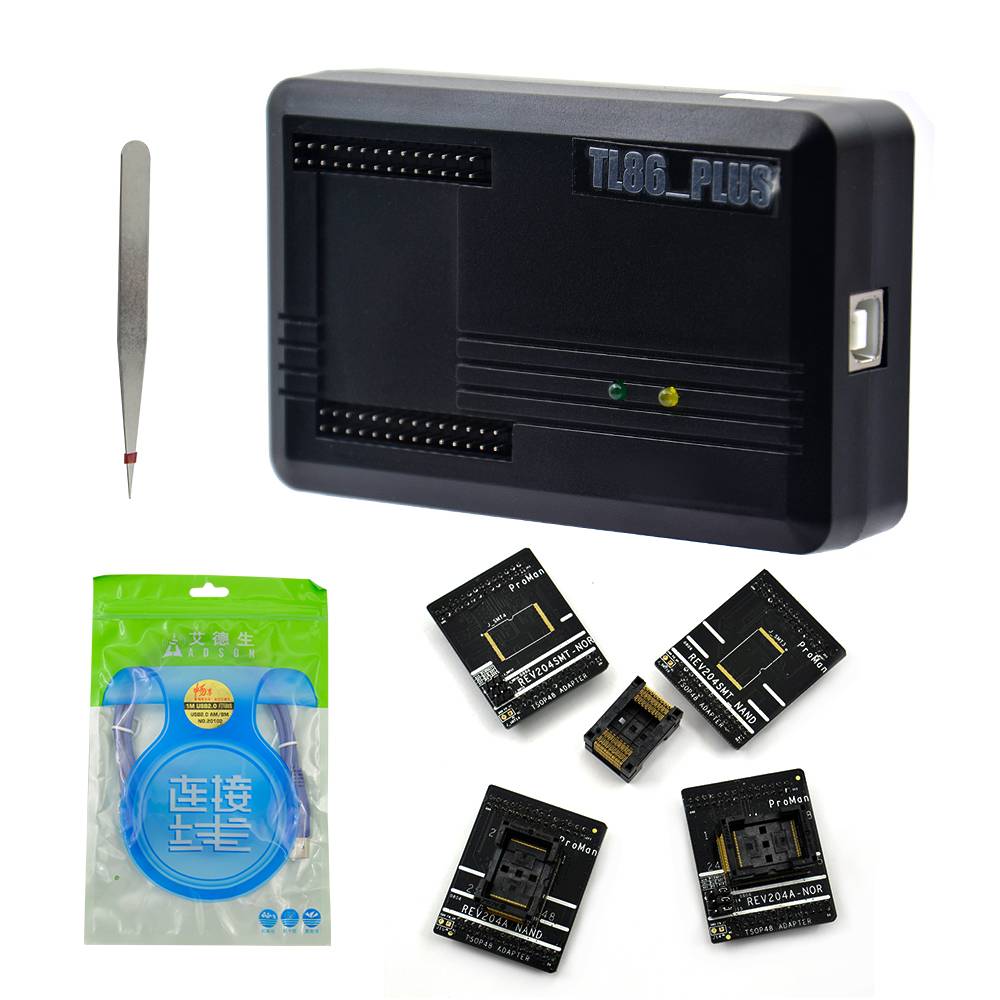

Package include:

one pcs Proman Programmerone pcs NAND ZIF adapterone pcs NAND SMD adapterone pcs NOR ZIF adapterone pcs NOR SMD adapterone pcs USB cableone tweezers

Features:
- can automatically detect NAND FLASH model and show bad block information.
- user can define new chip model and parameters to support more devices
- can "Read, Program, Verify or Erase" NAND Flash chips
- can revise or remove bad block flag
- support operating Spare Area (oob area)
- can read data from source chip and copy it into another new chip
- Powered by USB2.0 port, communication speed is high, easy to use
- Tested actually many manufacturers' NAND chips, such as Samsung, Hynix, Micron
(Numonyx), Toshiba, Spansion, STM, ESMT(Taiwan), Zentel, MXIC and so on. In addition to
TSOP48 package 3.3V NAND, at present add a few new models as below:
(1) TSOP48, 1.8V, NAND
(2) BGA63, 1.8V, NAND
(3) BGA63, 3.3V, NAND
(4) TSOP48, 3.3V, NOR
(3) TSOP56, 3.3V, NOR

please note: Proman is a profeesional NAND programmer. It is mainly used to program NAND flashes. The package don't include NOR TSOP56 adapter, because at present, proman can only support less NOR TSOP56 chips(you can carefully check the following Supported Device list).If you need to program much NOR tsop56 flash memory, I recommend you to buy TNM5000 programmer. It can support much more NOR TSOP56 model.

- Don't need to install driver, support Windows XP, WIN7, WIN8, WIN8.1, good compatibility

Supported Device:
ProMan programmer can support user-defined NAND model parameters, so theoretically
support all 8bit NAND chips. If in following list there is no model you want to program, you can
contact us to confirm if can support it.

128Mbits: HY27US08281A256Mbits: HY27US08561A512Mbits: H27U518S2CTR, HY27US08121A, HY27US08121B1Gbits: HY27UF081G2A, HY27UF081G2M, H27U1G8F2BTR, HY27SF081G2M(1.8V)2Gbits: HY27UF082G2B, H27U2G8F2CTR4Gbits: H27U4G8F2D*8Gbits:  H27U8G8G5D*, HY27UG08*<Samsung>128Mbits: K9F2808U0A, K9F2808U0B, K9F2808U0C256Mbits: K9F5608U0A, K9F5608U0B, K9F5608U0C, K9F5608U0D512Mbits: K9F1208U0A, K9F1208U0B, K9F1208U0C,1Gbits: K9F1G08U0A, K9F1G08U0B, KK9F1G08U0C, K9F1G08U0D, K9F1G08U0E2Gbits: K9F2G08U0A, K9F2G08U0B, K9F2G08U0C4Gbits: K9F4G08U0A, K9F4G08U0B-PCB0, K9F4G08U0C, K9F4G08U0D-SCB0, K9G4G08U0*8Gbits: K9G8G08U0A, K9G8G08U0M, K9K8G08U0A, K9F8G08U0M<Micron>128Mbits: NAND128W3A*256Mbits: NAND256W3A*512Mbits: NAND512W3A*, NAND512W3B*, NAND512R3A*(1.8V)1Gbits: MT29F1G08*, MT29F1G08ABADAH4:D(FBGA63), NAND01GW3B*2Gbits: MT29F2G08*4Gbits: MT29F4G08*8Gbits: MT29F8G08ABABAWP-IT, NAND08GW3B2A, NAND08GW3B2C<Spansion>1Gbits: S34ML01G1, S34ML01G2, S34MS01G1(1.8V)2Gbits: S34ML02G1, S34ML02G2, S34MS02G1(1.8V)4Gbits: S34ML04G1, S34ML04G2, S34MS04G1(1.8V)8Gbits: S34ML08G1, S34ML08G2<ESMT>1Gbits: F59L1G81A<MXIC>1Gbits: MX30LF1G08AA-TI, MX30LF1G08AA-XKI(FBGA63, 3.3V)<Zentel>1Gbits: A5U1GA31ATS, A5R1GA31ATS (1.8V),2Gbits: A5U2GA31ATS8Gbits: A5U8GA31ATS<Toshiba>128Mbits: TC58DVM72A1FT00512Mbits: TC58DVM92A1FTI0, TC58DVM92A5TA001Gbits: TC58NVG0S3, TC58DVG02D5TA00, TC58NYG0S3EBAI4(FBGA63, 1.8V)2Gbits: TC58NVG1S34Gbits: TC58NVG2S3<ATO>32Mbits: AFND5608U1-CKAK, AFND5608U1-CKCK(FBGA63)64Mbits: AFND1208U1-CKA1Gbits: AFND1G08U3-CKA<WINBOND>1Gbits: W29N01G*Actually tested NOR Flash support list (will update in the future):<AMD>AM29LV800BT*, AM29LV800BB*,<SST>SST39VF800A,SST39VF6401B*, SST39VF3201B*,SST39VF6401*, SST39VF3201*, SST39VF1601*, SST39VF160*<Micron>JS28F320C3B*, JS28F320C3T*, TE28F320C3B*, TE28F320C3T*<ST>M28W320FCB, M28W320FCTM29W160EB*, M29W160ET*<Spansion>S29AL004D*, S29AL008D*, S29AL008J*, S29AL016J*, S29JL032H*, S29GL032N*, S29JL064H*, S29JL064J*, S29GL064N*, S29GL128P*,S29GL256P*<CFEON>EN29LV160B*<TOSHIBA>TC58FVM5T2ATG65

please note: Proman is a profeesional NAND programmer, it is not BIOS EEPROM programmer. It is mainly used to program NAND flashes.
