Описание

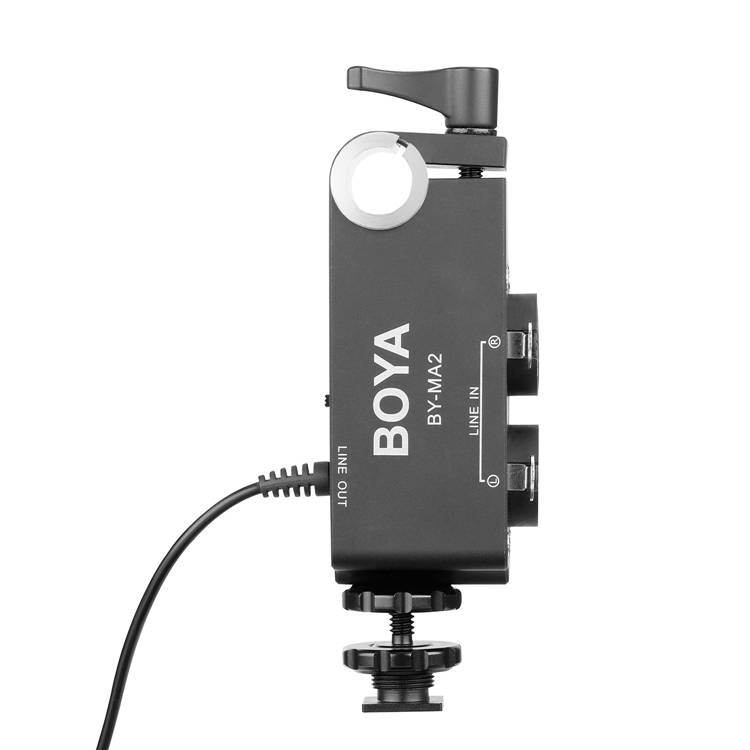

The BOYA BY-MA2 is a 2-channels XLR audio mixer which is designed for DSLRs, camcorders and other devices which has 3.5mm TRS audio jack. BY-MA2 has 2 XLR audio inputs that allow 2 external XLR wireless microphone receivers or XLR shotgun microphones to be used on it. With BY-MA2, it can help to improve the build-in sound performance and audio quality on camcorders or DSLRs. BY-MA2 also comes with built in combo 6.35mm jack which allows for instrument inputs such as guitar or other instruments that has 6.35mm output jack.

Built in with a standard 19mm bolt rod, BY-MA2 can be easily attached on any camera cages that with a 19mm rod. Meanwhile a 15mm bolt rod adapter is included which allows it to be compatible with any cages with a 15mm rod. At the bottom, it has 3 standard 1/4”-20 female threads that enable this audio mixer be able to connect to any camera cages(with 1/4 accessory holes) via a 1/4”-20 screw, or it can be located on the hot-shoe of DSLR cameras directly after the included cold-shoe mount adapter is well installed.

1. 3.5mm output connector
2. 1/4”-20 female threads
3. Combo XLR and 6.35mm audio input1
4. Combo XLR and 6.35mm audio input2
5. On/o switch
6. 19mm rod hole
7. 15mm rod adapter
8. Cold shoe adapter

1. 19mm bold rod

Attach the mixer on any 19mm camera baseplate rod

2. 15mm rod tube adapter

Attach the mixer on any 15mm camera baseplate rod

3. XLR1/ MIX / XLR2 switches

4. Cold shoe mount adapter

Attach it to any DSLR hot shoe

5. Passive operation

It neither require battery nor provide phantom power

6. Die cast aluminum chassis
